3 AXLES 40 FT CONTAINER FLATBED SEMI TRAILER

CHAOYANG container skeleton trailer dedicated to the transport of various containers, and also can be used to transport bulk cargo and other goods . It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.

Description
Inquiry

3 AXLES 40 FT Flatbed SEMI Trailer Description

We use high quality tensile steel to reduce beam fracture probability. The main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.

CHAOYANG flatbed semi trailer-03.jpg

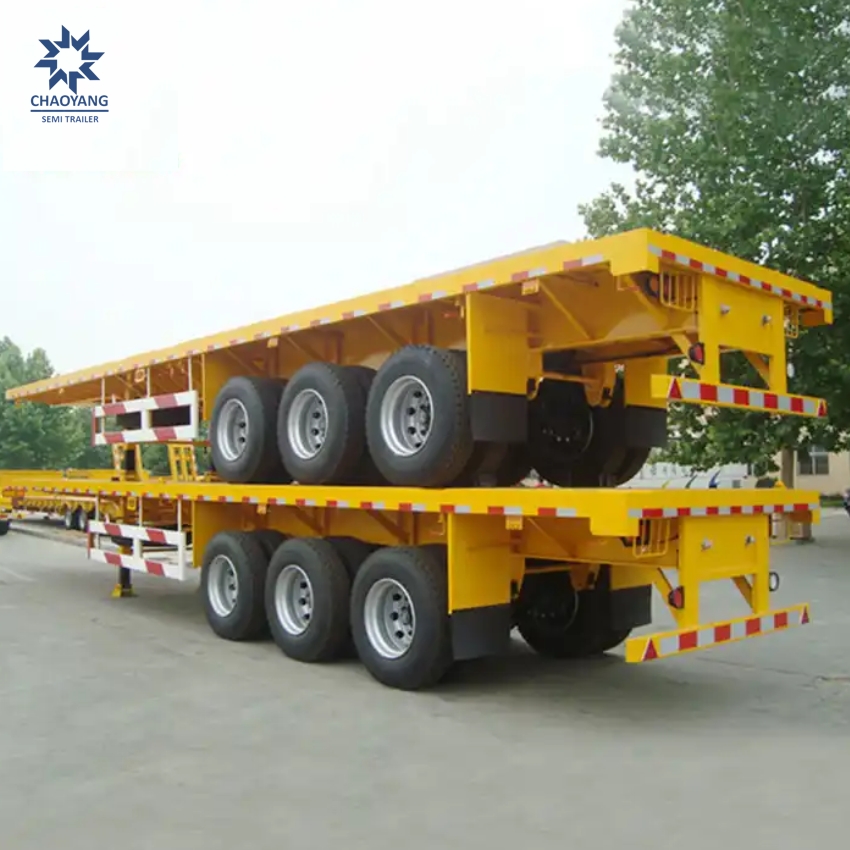

3 axles 40 ft flatbed semi trailer

Specification of 3 Axles Flatbed Trailer

Dimension	1240025001550mm
Loading Capacity	30-100 T
Axle	13T/16T, FUWA/BPW/SHENGRUN, etc
Rim	9.00*22.5/8.00-20/8.5-20
Tire	12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional
Suspension	Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring	90(width)mm13(thickness)mm10 layer(especial for exporting market)
King pin	Jost brand 2.0 or 3.5 inch
Spport leg	Jost brand two speed
Main beam	Material is Q345B steel
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm checquered steel plate
Brake chamber	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS	Optional
Twist locks	Four, eight or twelve pieces(Lifting type or twist screw type)
Valve	Wabco valve (especial for exporting market)
Light	LED Light (especial for exporting market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece 1m 0.5m0.5m ( size can be customized)
Painting	1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer
Shipping terms	By bulk vessel, RORO, or 40HQ container
Any parts fitted could according to clients request, contact us to get more
