40 FEET 3 AXLES FLATBED SEMI TRAILER

CHAOYANG flatbed semi trailers can produce with 12 units twist locks optional which the container flatbed trailers can satisfy customer multiple usage demand not only for carry 20ft or 40ft container, and also to carry bagged cement , steel bars, steel pipes, ton bag material.

Description
Inquiry

40 Feet 3 Axles Flatbed Trailer Description:

CHAOYANG three axle flatbed trailer is a good option for customers who transport containers such as 20 feet or 40 feet. All of our three axle flatbed trailer use polyurethane paint that has high adhesion and provides a more beautiful color.

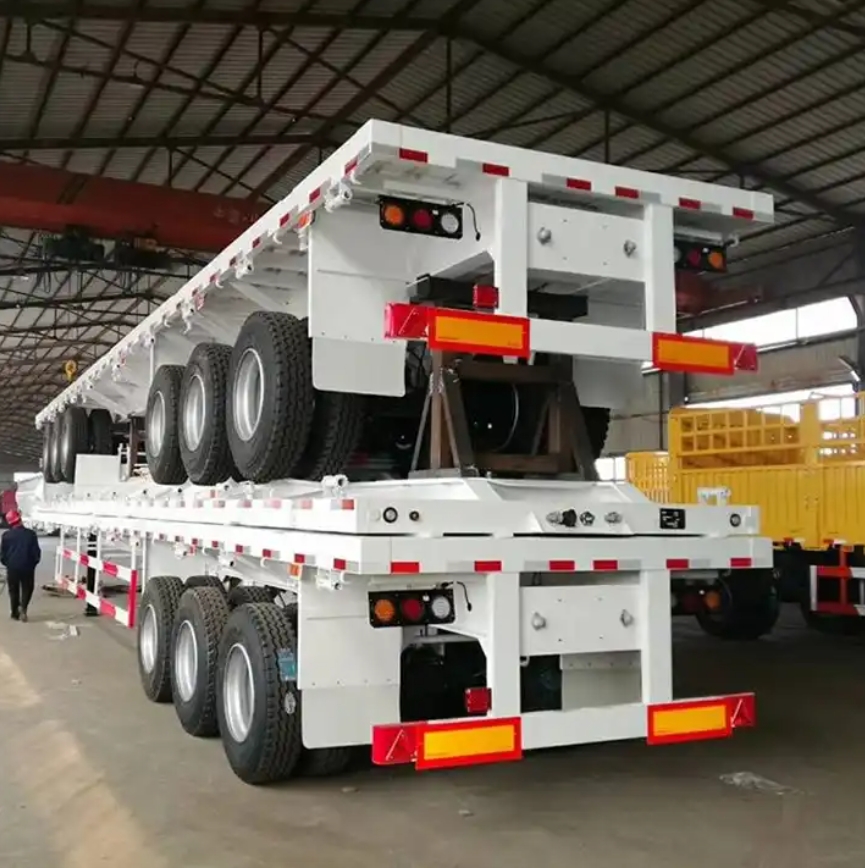

CHAOYANG flatbed semi trailer-04.jpg

CHAOYANG 40 feet 3 axles flatbed semi trailer

Specification of 40 feet 3 axles flatbed trailer

Overall Dimension (Lx W x H)(mm)	1250025001550
Leaf spring	90(W)mm13(Thick)mm10 Layer
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam	Q235 16# channel steel
Platform plate	3mm Diamond plate
Container Twist Locker	12pcs container lock
Tire Type and quantity	12R22.5 12units
Rim	9.00-22.5
Traction Pin	2" or 3.5"

Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by Chengda group,every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
