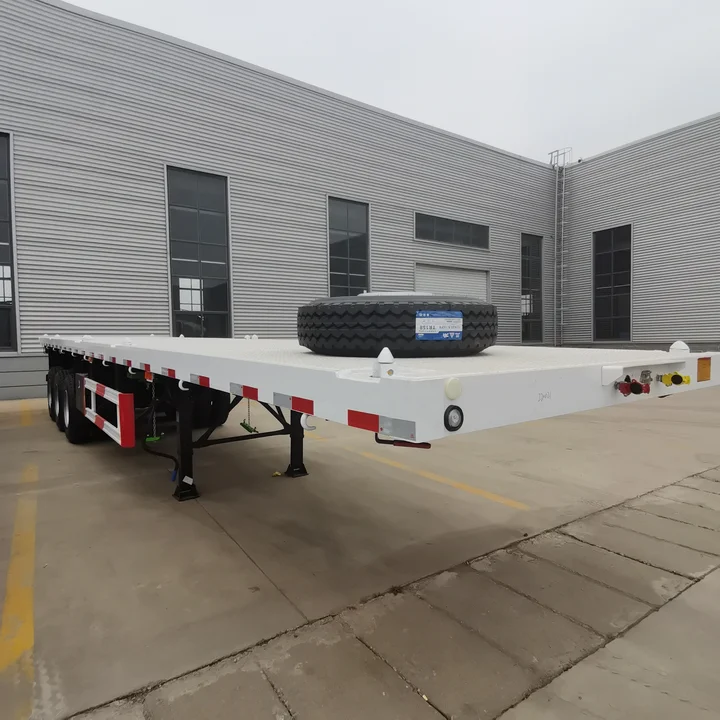

3 Axle 40 Ft Flatbed Semi Trailer

CHAOYANG has been manufacturing the flatbed  trailer for decades, the 40 ft 3 axle flatbed trailer is the hottest selling product among our customers.

The 3 axle 40 ft  flatbed trailer main beam is made of the high steel material, which has a better bearing capacity, to make the flatbed trailer has a longer service life.

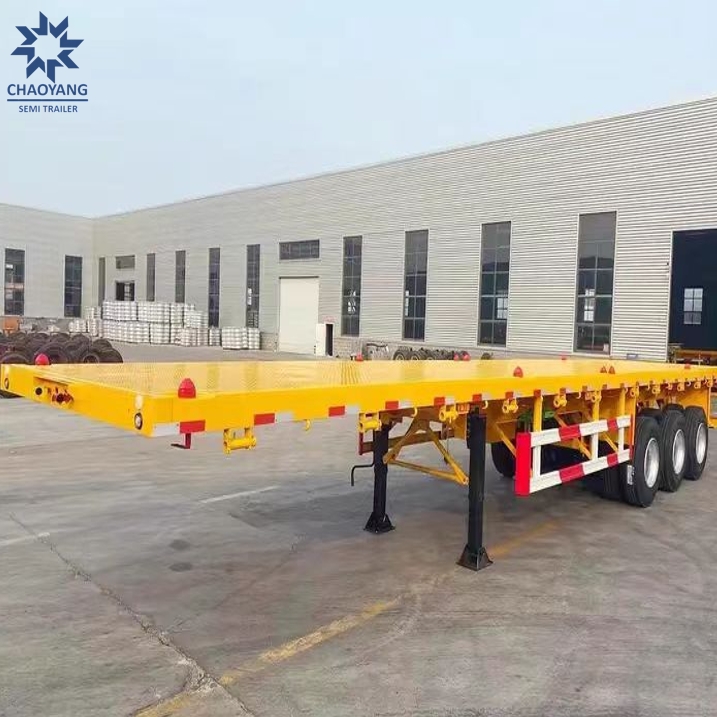

3 Axle 40 Ft Flatbed Semi Trailer

Specification:

Tare Weight: About 7T

Loading capacity(ton): ≤60T

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Dimension(mm): 12500x2500x1530

Rim: 9.00-22.5 or 9.75-22.5

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Side Beam: 16mm or 18mm steel channel

Platform: 4mm-thick checkered plate

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm,

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Valve: WABCO valve (specially intended for oversea market)

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

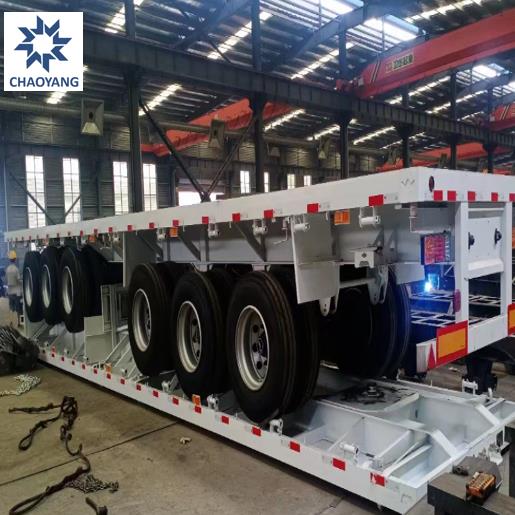

3 Axle 40 Ft Flatbed Semi Trailer

Advantage:

1.CHAOYANG auto adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5.Hight Quality container locks, make sure the stable and safety of the loads.
