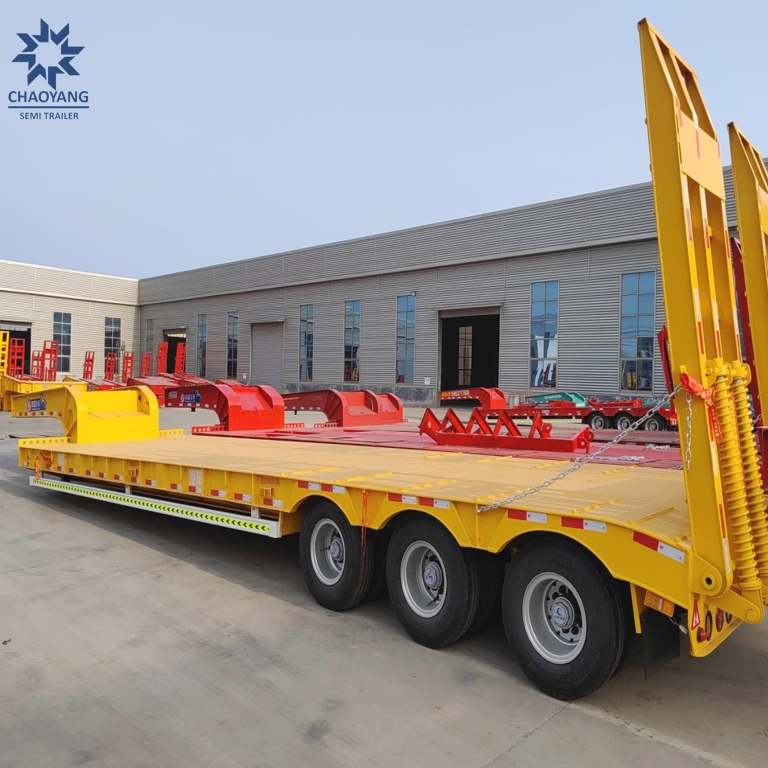

3 Axle Low Bed Semi Trailer

CHAOYANG auto offers low bed Trailers designed to carry 30 tons to 150tons. It's main cargo platform is low, which ensures the stability of transportation.

Description
Inquiry

3 Axle Low bed Semi Trailers Description:

CHAOYANG 3 axle low bed semi trailer are widely used in heavy machines transportation.

The low bed semi trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts High Strength Steel Material. we use it to make sure our low bed Trailer with a long service life and to avoid unnecessary maintenance.

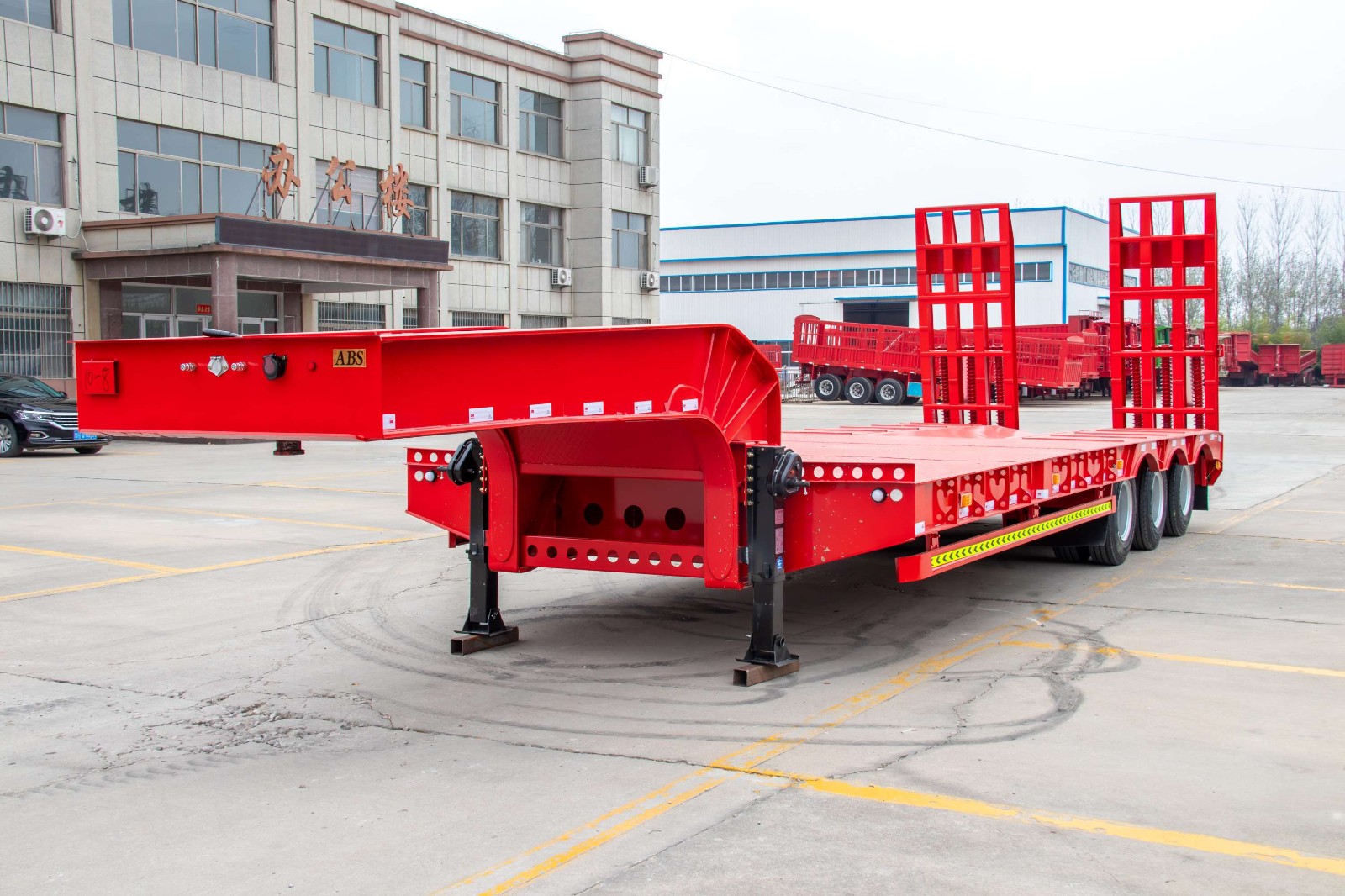

3 Axle Low Bed Semi Trailer

Specification:

Overall Dimension	10000(L)2500(W)3400(H)mm
Tare Weight	7.5T
Pay Load	60T
Suspension	Mechanical Suspension with 10-layers leaf spring
Main Chassis	Beam Height 550mm
	Top Flange Thickness 14mm
	Bottom Flange Thickness 16mm
	Middle Board Thickness 12mm
Side beam	160mm Channel Steel
Bottom Platform	4mm Checkered Plate
King Pin	3.5’’(90mm)
Landing Gear	Brand JOST
Tyre	12.00R22.5*12pcs
Axles	3 units of FUWA axles
Brake system	WABCO
Spare Wheel Rack	1 pcs
Electric System	24V, One Set 6-core Standard Cable
Tool Box	1pc
Light	Tail lamp with turn signal,brake light & reflector,side lamp etc
Painting	Primer Coating, Top Painting, Wax Polishing
Color	yellow

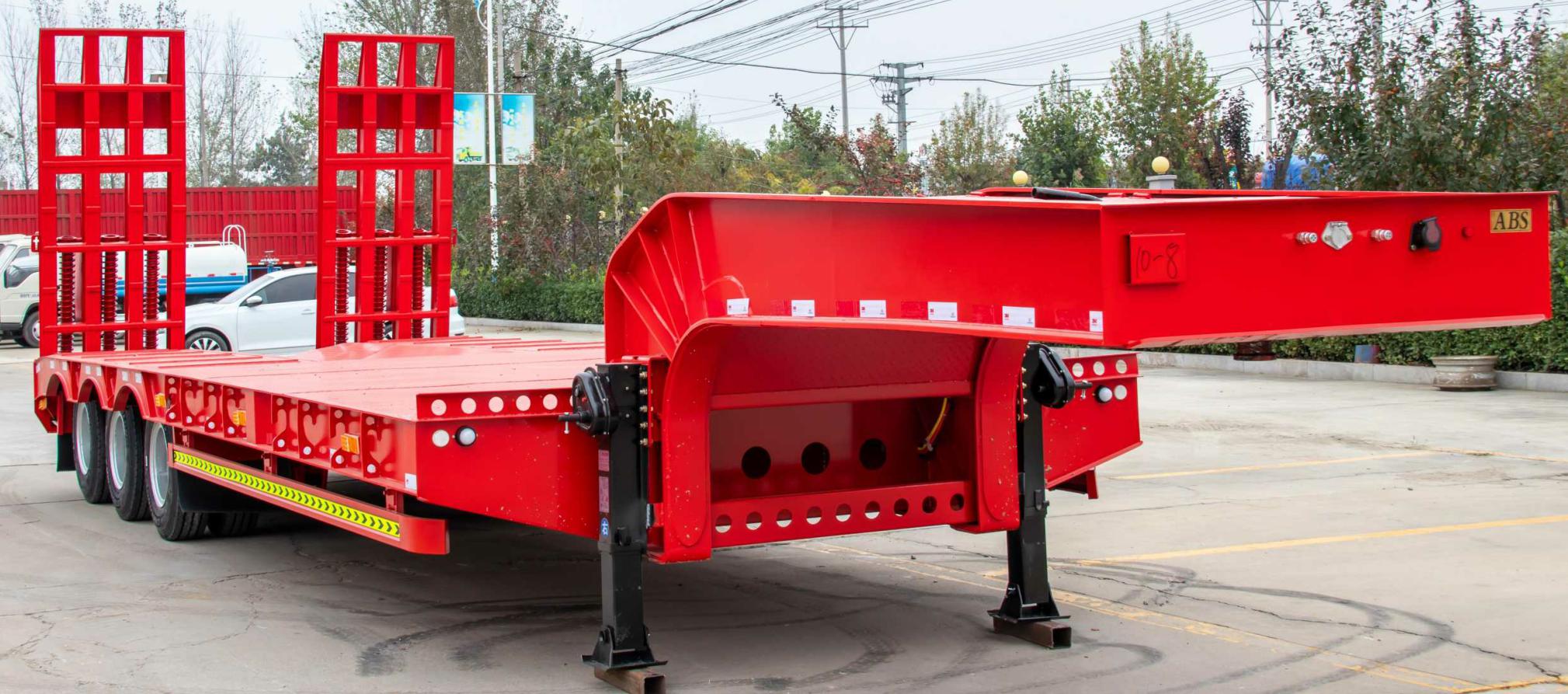

3 Axle Low Bed Semi Trailer

Advantage:

1.Our low bed trailer adopts high strength steel material , the yield strength of steel is more durable and stronger than ordinary steel, and its loading capacity is 5 times more the normal trailer .

2.The low bed trailer adopts 550mm main beam ,effectively increase 20% loading capacity than the normal trailer which uses 500mm main beam ,and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on different kinds of roads .
