3 Axle Curtain Sider Description:

Curtain side trailer combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security.

Curtain siders are widely used for the hauling of the goods from expensive automobiles to raw lumber, to delicate manufacturing components.

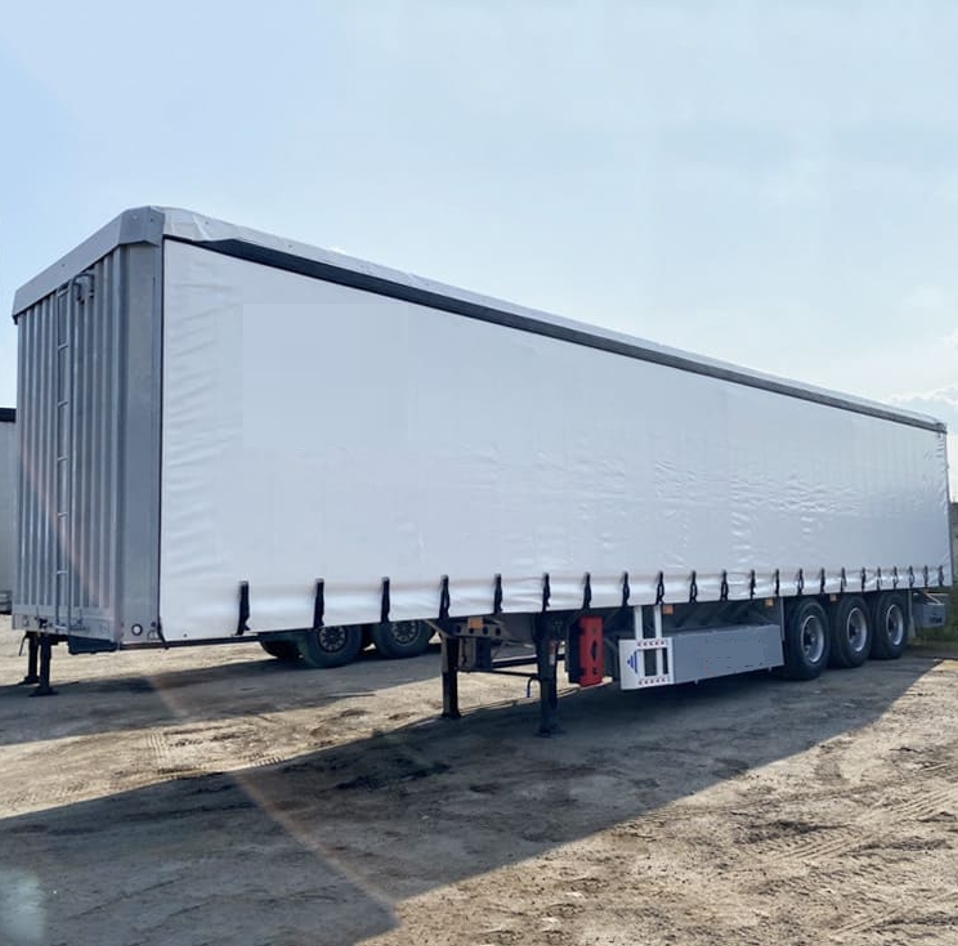

3 axle curtain side semi trailer

Overall dimension:13750x2500x4000mm. Axle FUWA,  3  axles,  FUWA.

Suspension type:Air Suspension..

Main beam:Height:500mm; Up plate: 14mm,  Down Plate: 16 mm , Middle Plate 8 mm..

Side Beam: 160 mm..

Traction pin: JOST Brand, optional 2” or 3.5”. Side: made of reinforced PVC curtains.

Tire quantity: 6units，385/65 R22,5.

Platform thickness: 3mm..   Braking system: WABCO.

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anti corrosive primer and 2 layer of top coats . Toolbox: 1 unit, 1m*0.5m*0.5m.

Spare wheel carrier: 1 units.

Side marker lamp: LED type, 24V.

Other: Trailer top cover canvas sunshade, other 1 set of side sliding facade assembly, 4 pillars on each side.

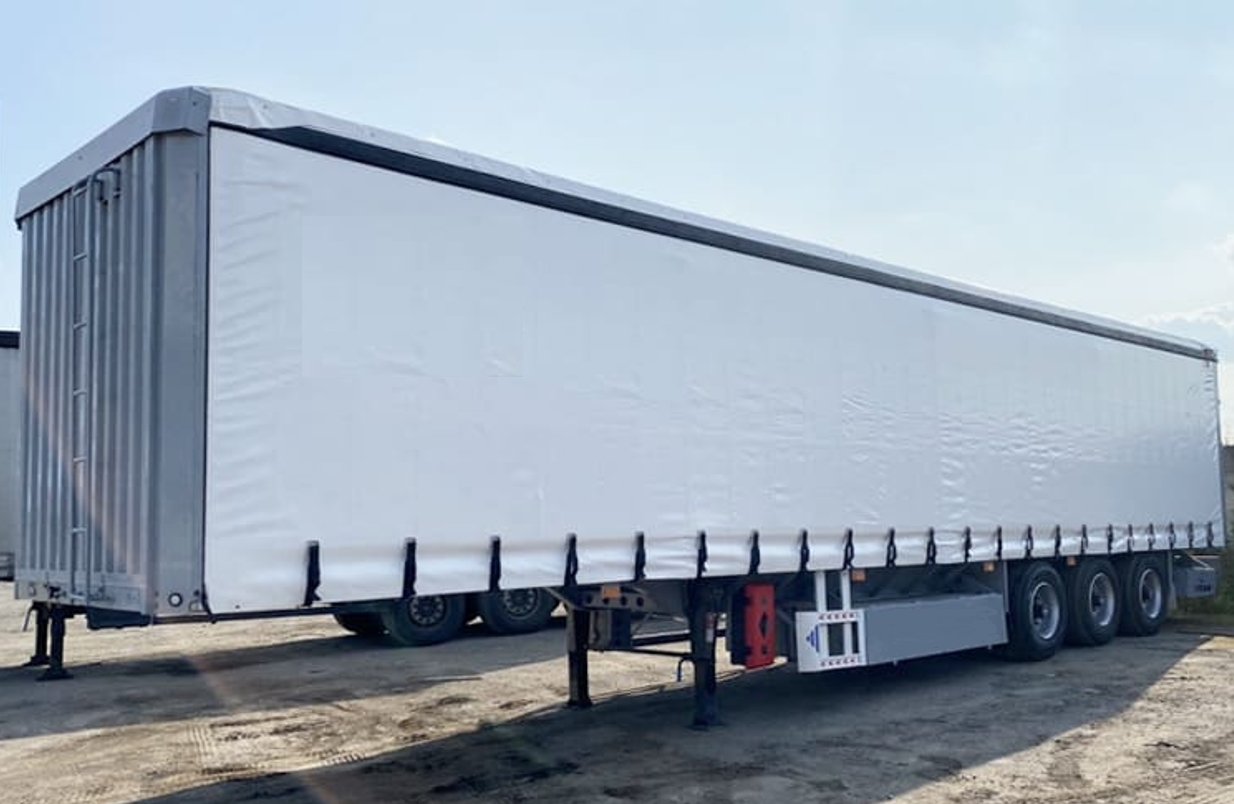

3 axle curtain side semi trailer
