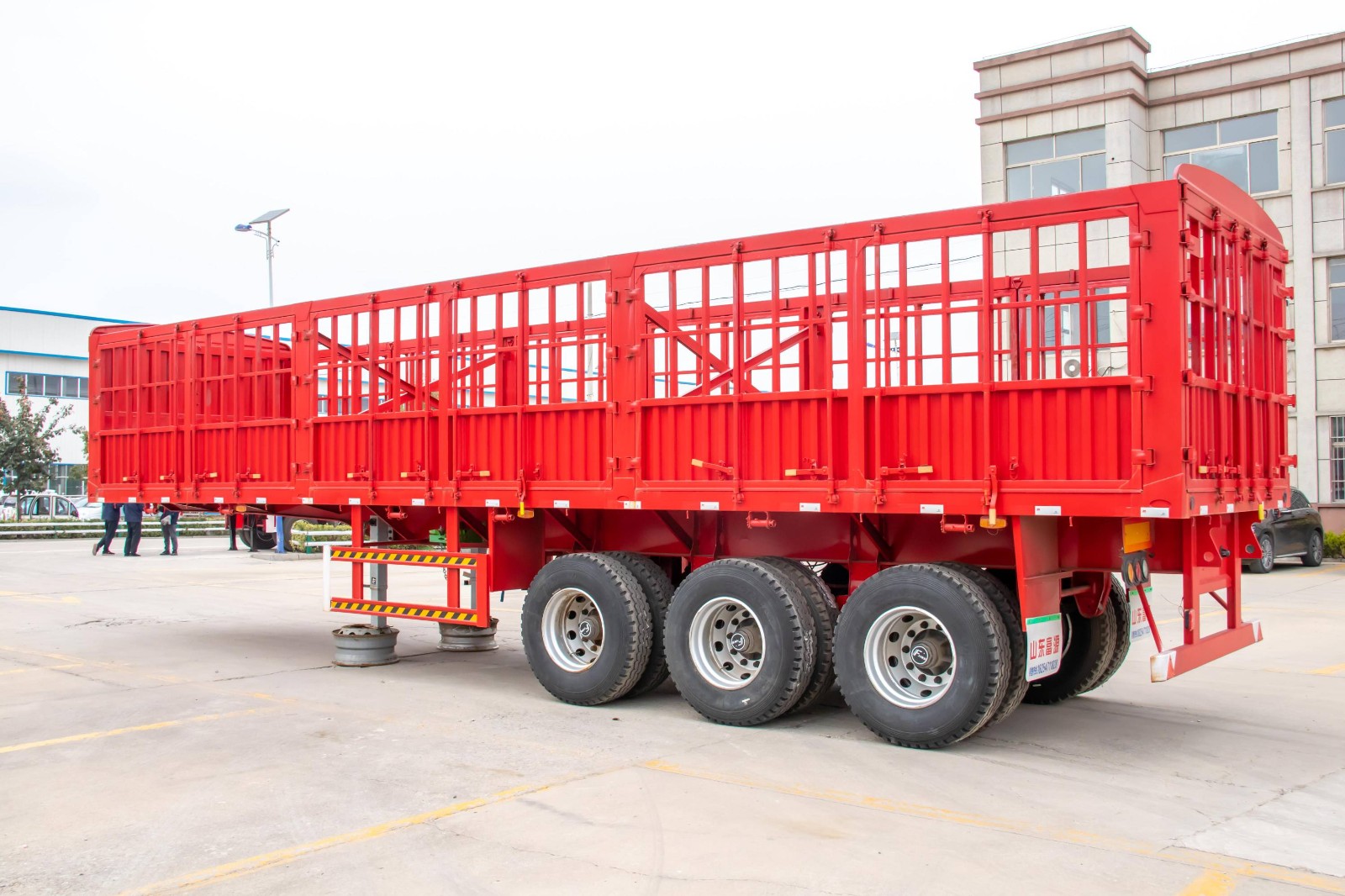

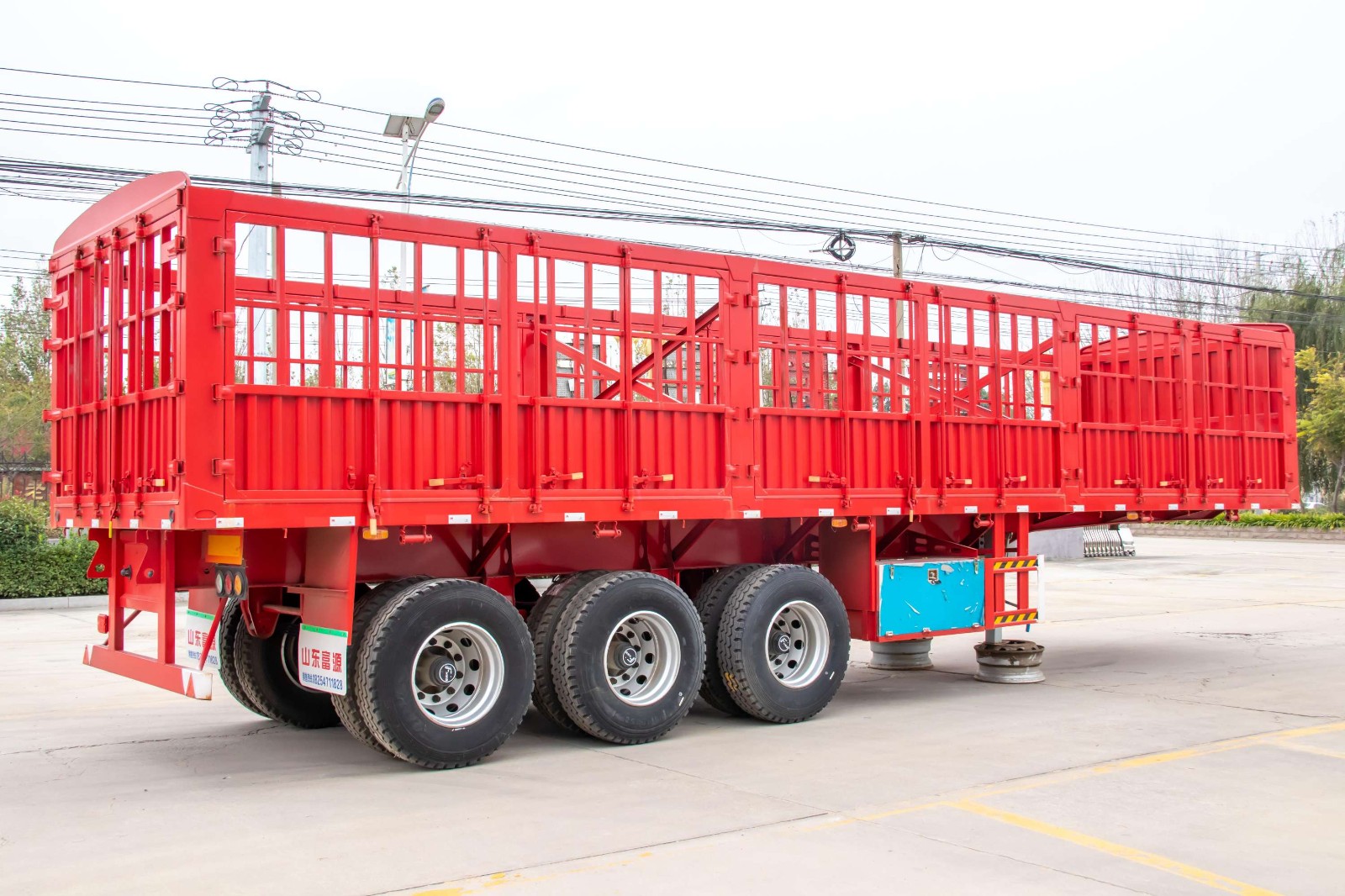

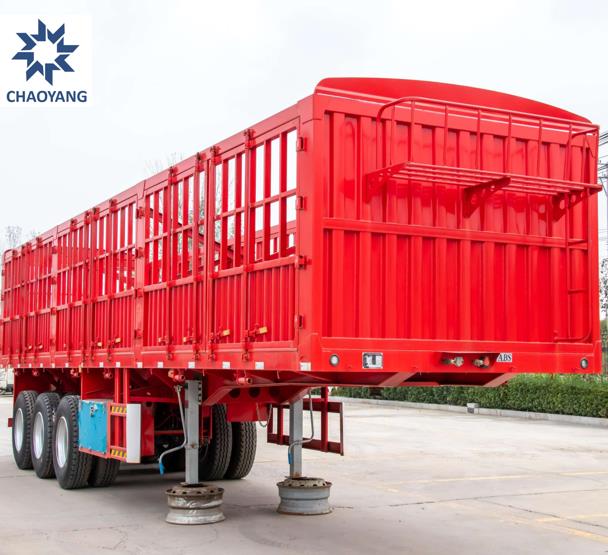

3 Axle Fence Semi Traier

The warehouse grate type semi trailer is used to transport simple goods, such as vegetables, fruits, clothes, electrical appliances, and other daily necessities. For power engineering and communication engineering, they also play a very important role. For small equipment in engineering, they are transported using a semi trailer with a warehouse grate.

3 Axle Fence Semi Traier

Specification：

Overall dimension：11900mm * 2500mm *1600mm

Loading capacity: 40-60ton

Axles：3 axles

Sidewalls height: 600mm, 800mm

Suspension：Heavy duty mechanical spring suspension

Tire：12 units

Landing gear：JOST

Brake system: WABCO

Electrical system: 24V, LED lights

3 Axle Fence Semi Traier

Advantage:

1. The structure design of the semi trailer for warehouse grate transportation is reasonable, fully reducing the weight of the carriage under load conditions. Simple and applicable structure, easy to disassemble.

2. The spatial frame structure of the gantry semi-trailer can balance the strength, stiffness, and toughness of the frame, with strong load-bearing capacity and no long-term deformation.

3. The frame of the semi trailer series for warehouse type transportation is a through beam structure, with web heights ranging from 400 to 500 mm. The longitudinal beams are welded as a whole.
