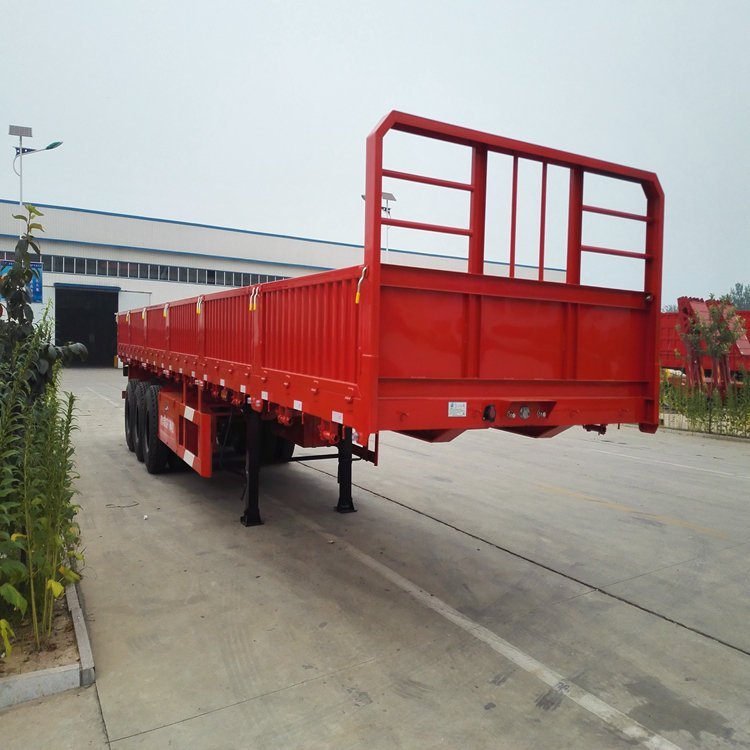

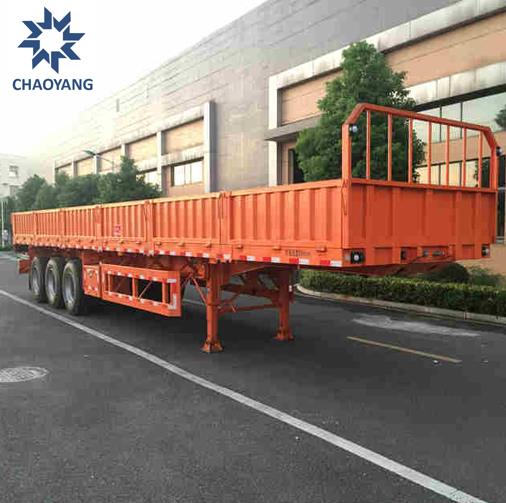

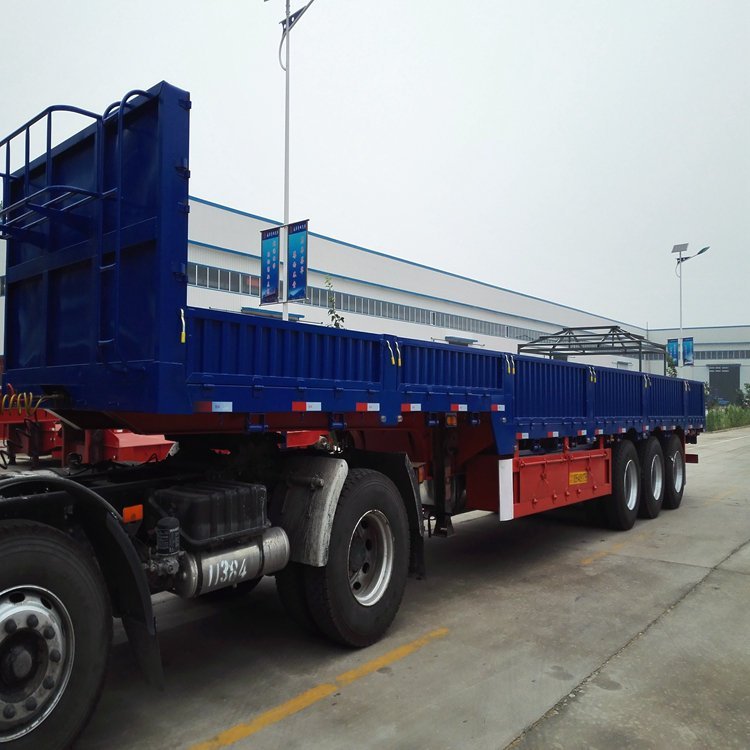

3 Axle Sidewall Semi Trailer

Sidewall semi trailer is the most common type in the market, with a cargo structure and strong adaptability. It is mainly suitable for medium to long distance transportation of medium to heavy and bulk goods.

3 Axle Sidewall Semi Trailer

Specification：

Overall dimension: 12500mm*2500mm*2350mm(800mm sidewall)

Loading capacity : 50-60ton

Axles：3 axles

Tire：12 units

Suspension：Heavy duty mechanical spring suspension

King pin：90#

Langing gear：JOST

Brake system : WABCO

Electical system : 24V , LED lights

3 Axle Sidewall Semi Trailer

Advantage:

Features of railed semi trailer:

1. The entire vehicle body is made of excellent steel, advanced technology, and strict production. The structure of the vehicle is reasonable, reliable in performance, easy to operate, and beautiful in appearance.

2. The frames of semi-trailers are all of a beam through structure, and the longitudinal beams are of a flat or gooseneck type. The frame adopts shot peening treatment, and the crossbeam penetrates into the longitudinal beam to form the overall structure.

3. The suspension adopts a steel plate stamping rigid suspension, which is made of a series of steel plate springs and suspension supports; Reasonable structure, with strong rigidity and strength, used to support loads and mitigate impacts.
